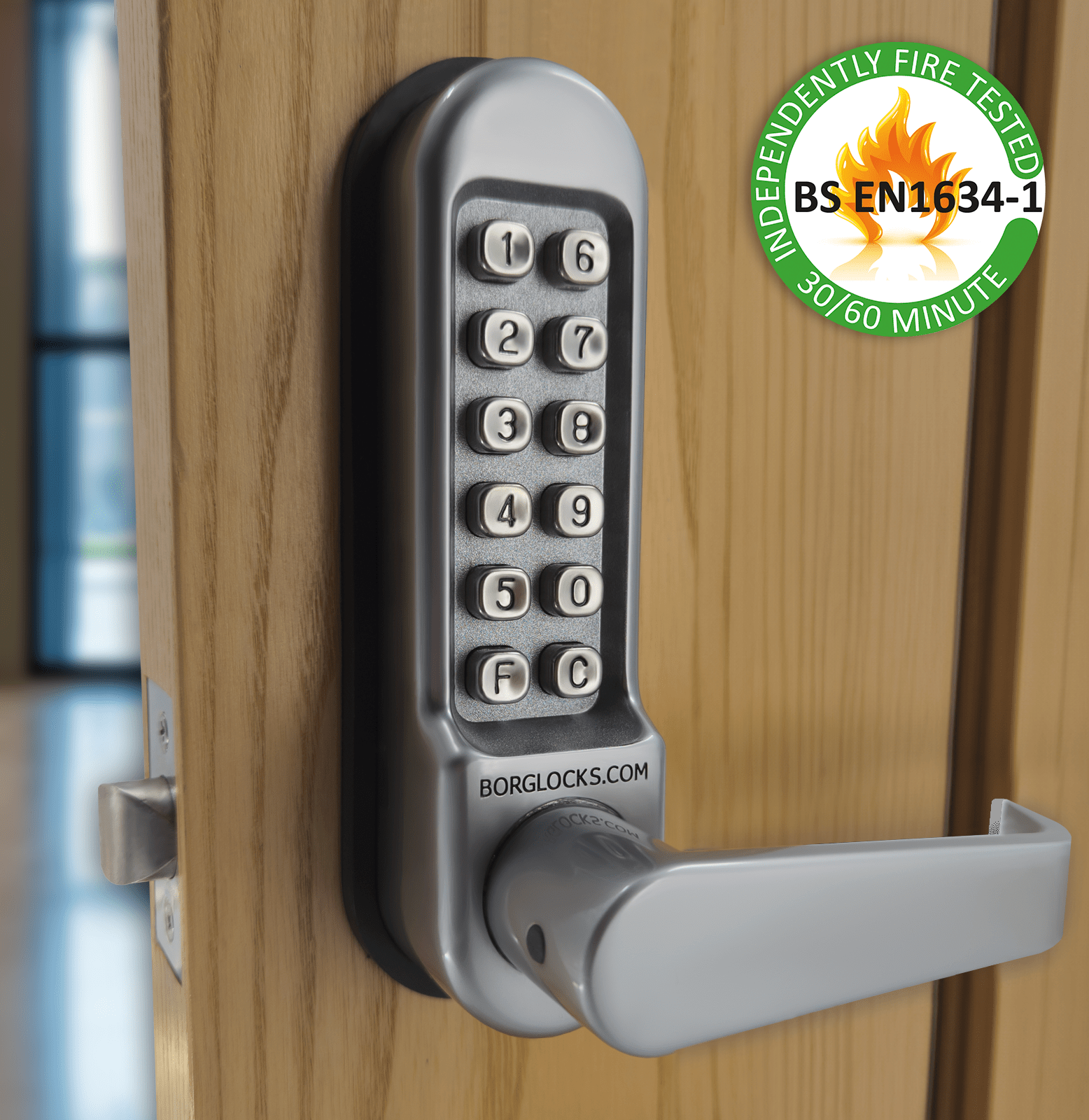

BL5401 FT – 30/60 minute fire tested, flat bar handle keypad with a tubular latch, flat bar inside handle & free passage mode

The BL5000 series represents a medium to heavy duty lock with a fully clutched, flat bar handle. This keypad comes with an optional free passage mode, allowing a bypass of the coding mechanism. The BL5401 FT is fitted with an intumescent kit, along with stainless steel fixings for  use on 30 minute and 60 minute fire doors.

This unit comes with a 60mm tubular latch.

SKU BL5401 FT Categories , ,

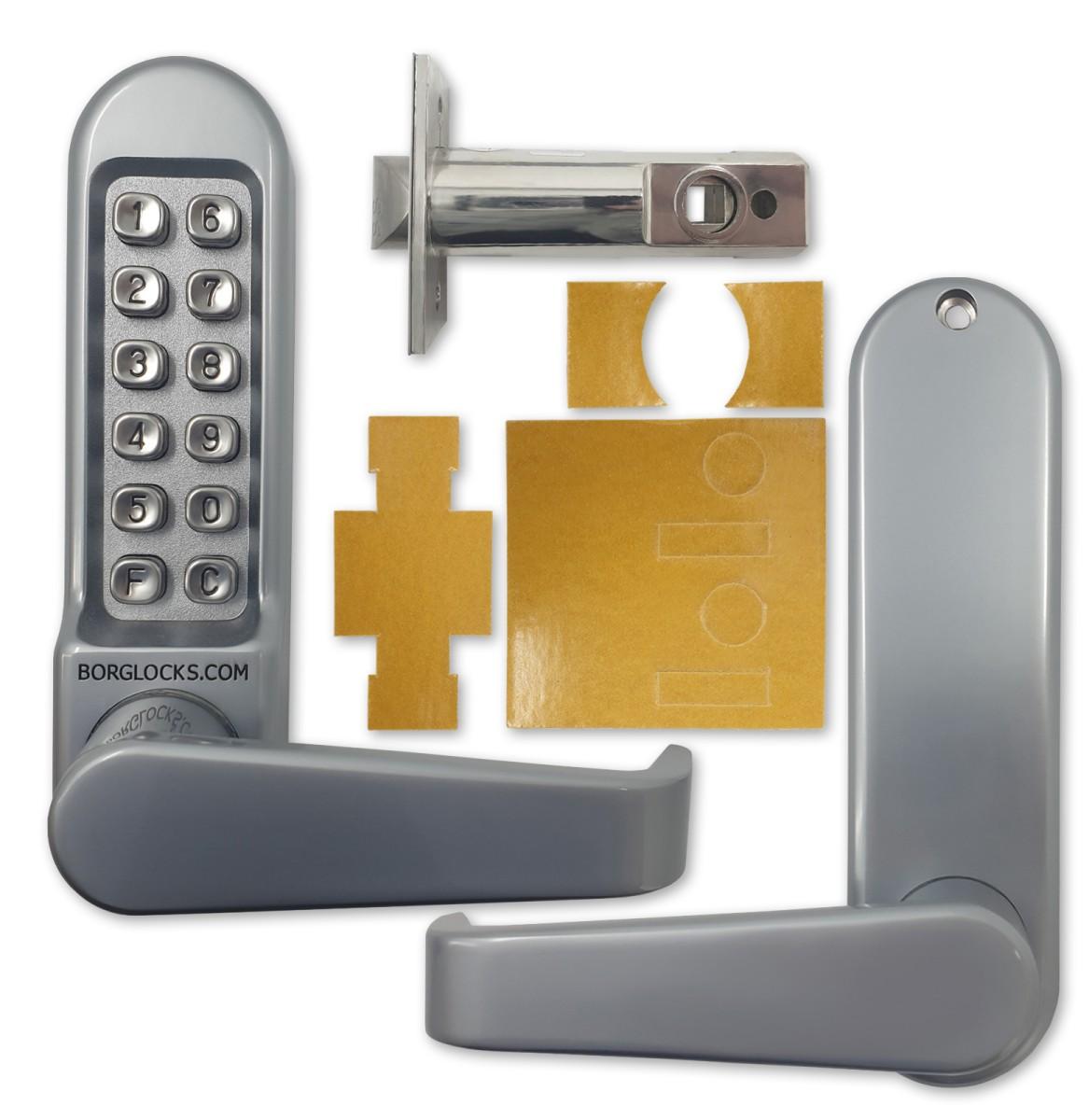

Independent successful fire resistance test was carried out by BM Trada for 30 and 60 minutes in accordance with BS EN1634-1 and BS EN1363-1. Each fire tested kit comes fully supplied with the required stainless steel fittings and intumescent kits to keep it fully in accordance with the required certification.

The BL5400 series represents a medium to heavy duty lock where lighter duty locks just won’t handle it. Offering a fully clutched flat bar handle, this lock can be suited for most different applications out there. When fitting on a front door, a secondary BS rated euro cylinder is recommended for use in conjunction.

Each BL5401 offers a optional free passage mode, enabling a bypass mode to deactivate the coding chamber. Until deactivated, this allows you to enter without the need to enter the code.

This variation comes with a 60mm or 70mm tubular latch. Suitable for internal and sheltered external use on wooden doors.

Additional information


Timber Door, Steel Door, Composite Door


Polished Brass, Polished Chrome, Satin Chrome, Satin Stainless

Internal / External

Sheltered External


60mm tubular latch


Fire Door Locks

Duty Rating


Handle Type

Flat bar lever

Latch type

Tubular latch
