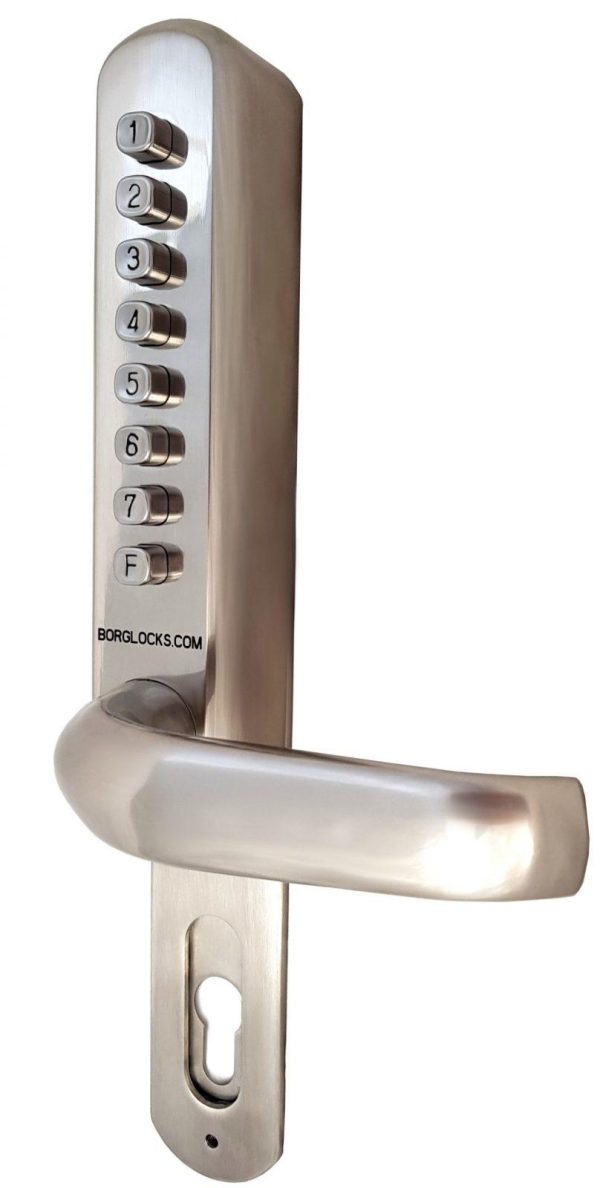

BL6100 – Narrow stile, heavy duty keypad with double button pressing functionality & escutcheon to suit 90/92mm centre multipoint locks

From £273.00

Availability: Please select from the options for price & availability.



Product Details

The BL6100 is our unique design, incorporating the need for a narrow stile door section lock not often seen on the market. With a body width of just 45mm, this lock is ideal for areas where conventional locks just wont fit including UPVC doors.

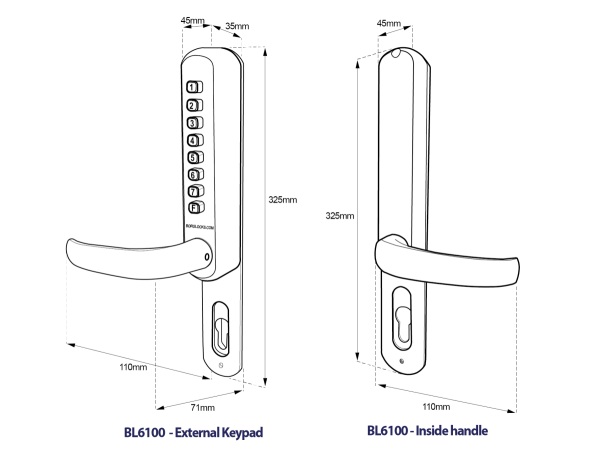

This comes with an 325mm long extension plate fitted behind the keypad and inside handle adding an extra 113mm to the length of the unit, effectively making it suitable with 90 & 92mm centred multi-point locks and helping to cover all existing holes on the door.

This lock incorporates a single column of 8 buttons, each offering a double button press system, allowing digits to appear twice in the code. The free turning handle is permanently clutched to provide no handle resistance if the correct code is not entered. This model also features a free passage mode that, when enabled, bypasses the coding chamber to allow access without the need of entering the code all of the time until it is disabled once more. This mode is optional and can be fully disabled should it never be needed.

The BL6100 is supplied with no device and is for use with either an existing set up or a third party latch.

Due to the handle rotation, this is ideal for use with multi-point latches. This lock is suitable for internal and sheltered external narrow stile UPVC, aluminium, composite and wooden doors.

Need any help?

A full range of documents, including code change instructions for all Borg Locks, fixing templates, product literature and installation guides can all be found on our help and support page

Get in touch

If you have any questions or would simply like to discuss a new project, feel free to get in touch by clicking below.
Alternatively, you can call us on +44 (0) 1708 225700.

Our office address is: Unit 9 Upminster Trading Park, Warley Street, Upminster. RM14 3PJ
