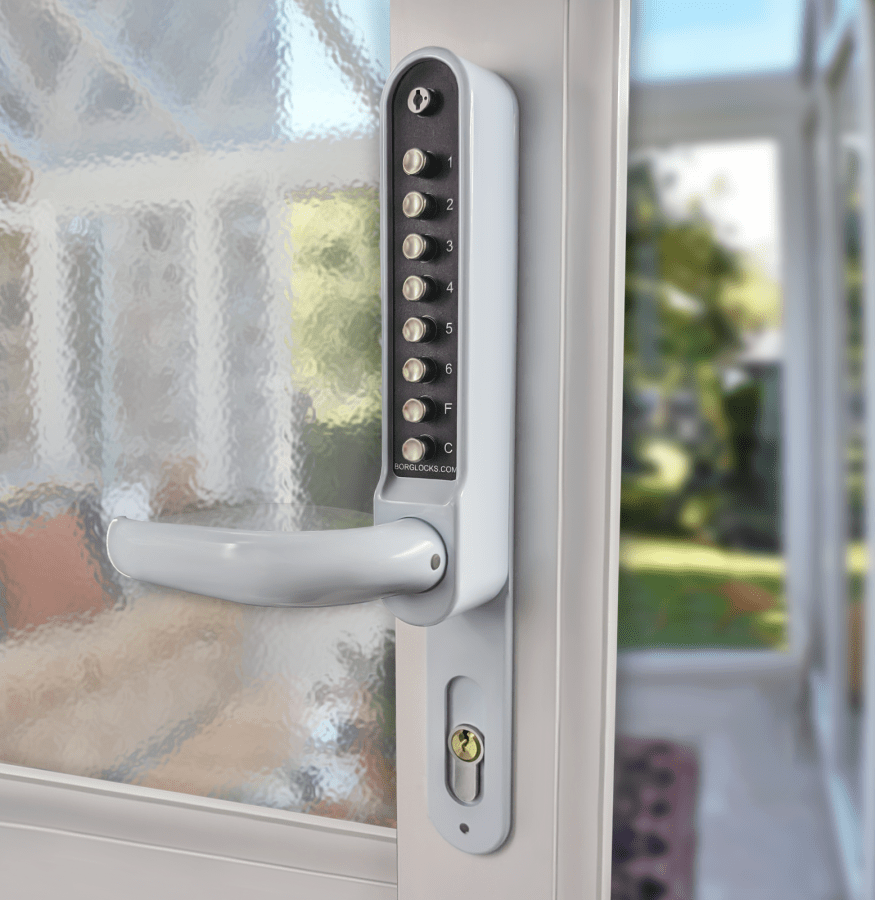

The BL6100 ECP is a digital lock for multipoint doors that replaces the handle and lock mechanism with a slimline keypad. It fits directly onto the 90mm and 92mm centred multipoint locking systems found on the vast majority of UK residential and commercial doors. There is no complex wiring, no structural changes, and no need for specialist door furniture.
The lock keeps the existing key mechanism in place, so you retain a key override and full deadlocking function. A code entered on the keypad operates a free-turning handle, which only engages when the correct code is entered. Get the code wrong, and the door stays completely secure.
Most keypad locks on the market require a compatible door profile or new door furniture before they can be fitted. The BL6100 ECP takes a different approach. It has been purpose-built for the 90mm and 92mm centred multipoint locks that come as standard on UPVC door locks, composite door locks and aluminium door locks across the UK.
There are no adapters and no workarounds involved. The lock has been engineered from the ground up to fit these existing systems, which means installation is far simpler than fitting a typical smart lock system.
Every BL6100 ECP comes with the Easicode Pro coding chamber built in. This lets you change the access code directly on the door in a matter of minutes, using the code change key provided. There is no need to remove the lock, and no need to call out a locksmith.
This matters for everyday life. Whether you have just moved into a new house and want to reset the code straight away, had a change in your household, or simply want to update the code from time to time for peace of mind, the process takes a few minutes at the door itself.
One of the standout features carried over from the original BL6100 is the double button press function. The keypad has a single column of eight buttons, but each digit can be pressed once or twice as part of the code sequence.
This doubling of input options pushes the number of possible code combinations to over 2,100. That is a significant jump over a standard keypad lock, and it makes the BL6100 ECP considerably harder to guess or work through by trial and error.
Combined with the free-turning handle that only engages on the correct code, this gives homeowners a genuinely strong layer of access control. It sits well above what a standard key and handle set can offer.
The BL6100 ECP is available in stainless steel or white PPC, so it can be matched to the multipoint door it’s fitted to.
The stainless steel finish suits aluminium doors particularly well, giving a clean and contemporary look while offering strong resistance to weather and tampering. It’s suitable for both internal doors and sheltered external locations.
The white PPC finish is designed to blend in with white UPVC doors, giving a neat, integrated appearance rather than looking like an add-on. Both finishes are tested to the same rigorous standard, so the choice comes down to which suits your door and your home.
Borg Locks tested the BL6100 ECP to more than 100,000 operating cycles, reflecting years of daily use. The lock is reversible on site, so the same unit suits either left- or right-handed doors, which simplifies stock and installation for fitters and gives homeowners flexibility if a door ever needs reworking.
It suits doors up to 85mm thick, which covers the great majority of standard UPVC, composite and aluminium door profiles found in UK homes. The narrow 40mm body width means it fits comfortably into narrow stile doors, and extension plates are included to cover existing fixing holes, so the finish looks clean and considered rather than patched together.
This lock is a practical option for anyone who wants keyless entry without the cost and disruption of replacing a door. Families who want to stop cutting spare keys, landlords who need to change access between tenants, and homeowners who simply want a tidier, more modern-looking door handle are all good candidates.
Because it works with the multipoint locking system already fitted, most installations can be carried out by a competent locksmith or installer without any need to alter the door itself. That makes the BL6100 ECP one of the more accessible ways to add a narrow stile keypad lock to a home that already has a standard multipoint door.
A keypad lock for multipoint doors is a digital lock designed to work with the multipoint locking mechanisms already fitted inside UPVC, composite and aluminium doors. Instead of using a traditional key and handle, you enter a code on a keypad to release a free-turning handle, which then operates the existing multipoint lock.
In most cases, yes. The BL6100 ECP is built for the 90mm and 92mm centred multipoint locks that are standard on the majority of UK doors, and it fits directly onto the existing mechanism without structural changes or new wiring. It also suits doors up to 85mm thick, which covers most standard door profiles.
The BL6100 ECP includes the Easicode Pro coding chamber as standard, which allows you to change the access code directly at the door using the supplied code change key. There is no need to remove the lock or arrange a locksmith visit.
The double button press function lets each digit on the keypad be used once or twice within a code, which increases the number of possible combinations to over 2,100. This makes the lock considerably more resistant to guessing than a typical single-press keypad lock.
The BL6100 ECP is available in two finishes, stainless steel and white PPC. Stainless steel suits aluminium doors and offers strong weather and tamper resistance, while the white PPC finish is designed to blend in with white UPVC doors for a clean, integrated look.
